The Frisomat Delta is a smart, easy to mount, quality hangar with a saddle roof. Made from pre fabricated galvanized steel along European quality targets, it is resistant and sturdy. The modular system makes it always extensible. Your industrial steel building will grow with your needs. Matsul sells and erects warehouses with extremely short delivery times in Rio Grande Do Sul, Santa Catarina and Parana.






features

The Delta+, specially adapted for Brazil, has a traditional gable roof with a slope of 10° (or 18%), a ventilated ridge and the standard RAL 9003 white color has good heat reflective properties.  A 2 foiled gate is standard, as well as translucent sheets in the roof for daylight.  Options are gutters, thermal insulation, extra ventilation, wide and XXL-doors and so on.

immediate available

Designed as a standardized customization, all cladding, panels, columns are pattern made in our factory in Monte Mor, SP along a limited number of standard sizes. When not on stock, parts can be rapidly produced using the latest state-of-the art technology. Combined with little foundation needs, and the fact that the parts just need to be bolted together on the erection site, extremely short delivery is possible. Compact and lightweight parts, make transport and manipulation easy, thus enabling a budget-friendly result.

applications

This type of building suits a wide range of applications, like warehouse or workshop, production facility, general storage, bulk storage when built on or equipped with a flood wall, barn, etc… we are happy to see that our customers still add applications we never thought about !  Yes, it may serve to guard your collection of classic cars !  And what about an aviary to breed rare birds?

conform ABNT norms

The cold rolled steel is all galvanized which guarantees longevity, the structure is light but rigid. Calculated to ABNT norms it will survive winds up to 180 km/h (50 m/s wind region V in south Brazil)  To reach this, we adapt steel thickness and column pitch, when needed.  Thence, when asking us a quote, we will always consider the exact location and rugosity of the construction site, guaranteeing your harvester, or your biplane to survive the fiercest storm.

dimensions

This all-steel all-galvanized saddle roof warehouse has 4 wall heights and 5 span widths to choose from.

The length starts at 13m and is unlimited, for span width we offer 8, 10, 12, 15 and 16m, and wall hight can be 3,4,5 and in some cases -depends the wind region - 6m high. At all times the Delta can be expanded by adding more segments. This is easy because our system is modular and just bolted on site.

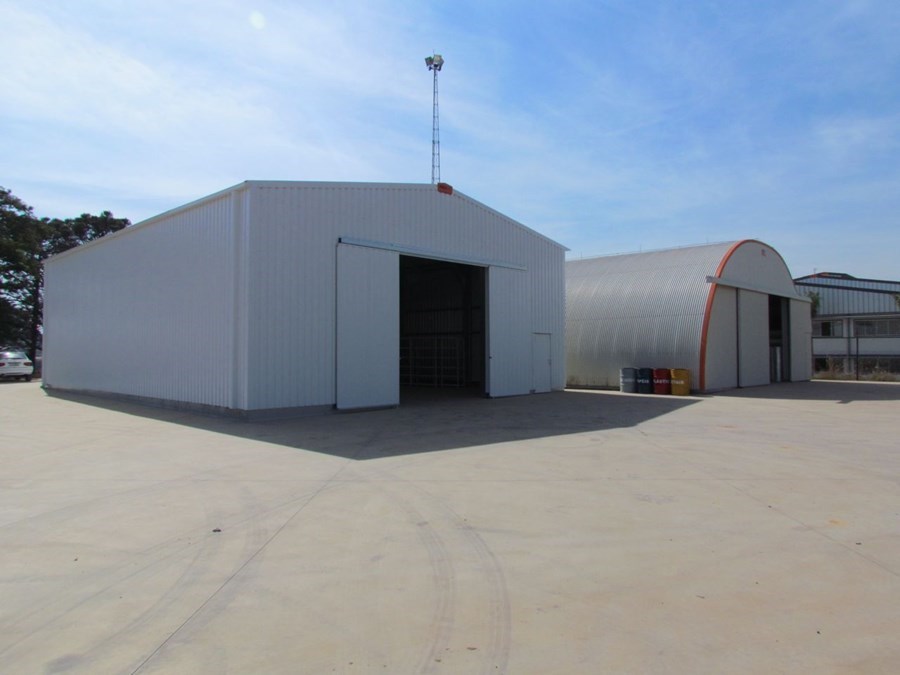

view of 2 steel industrial buildings made by Frisomat in Monte Mor, SP, the Delta has a traditional gable roof

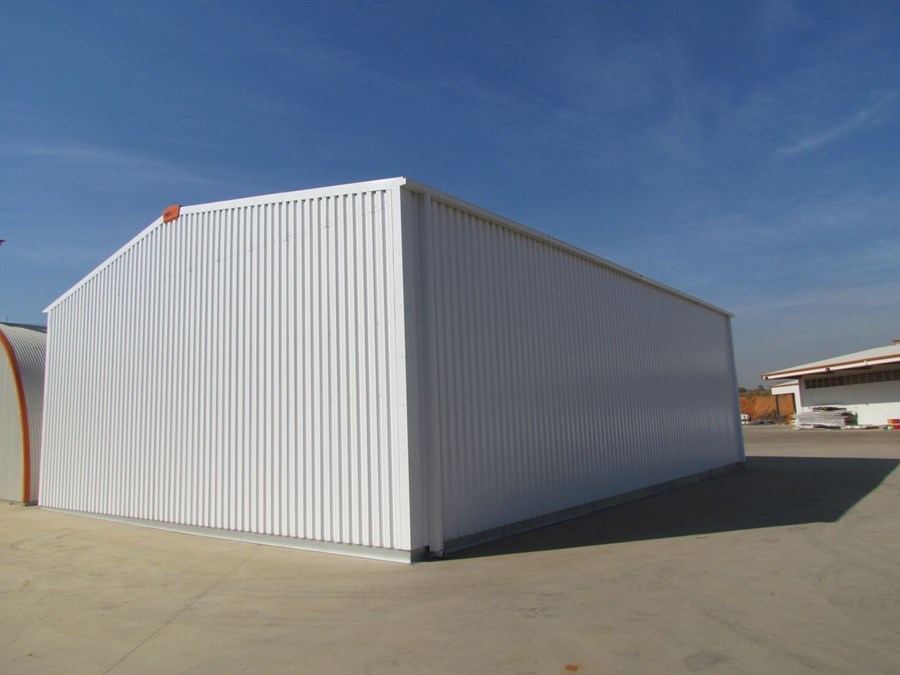

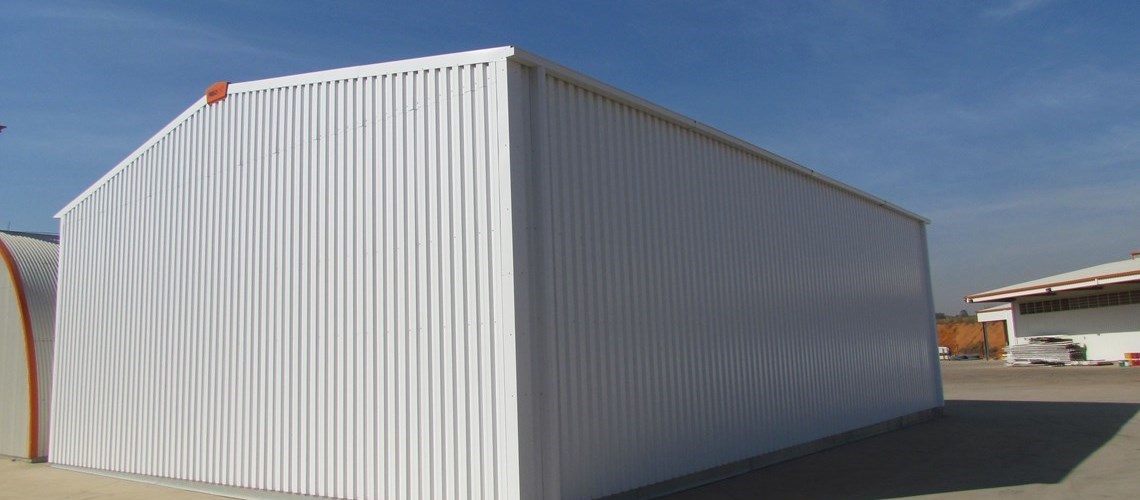

rear view of a hangar Delta, structure is made from galvanized steel, cladding is galvanized and pre painted in white to reflect heat

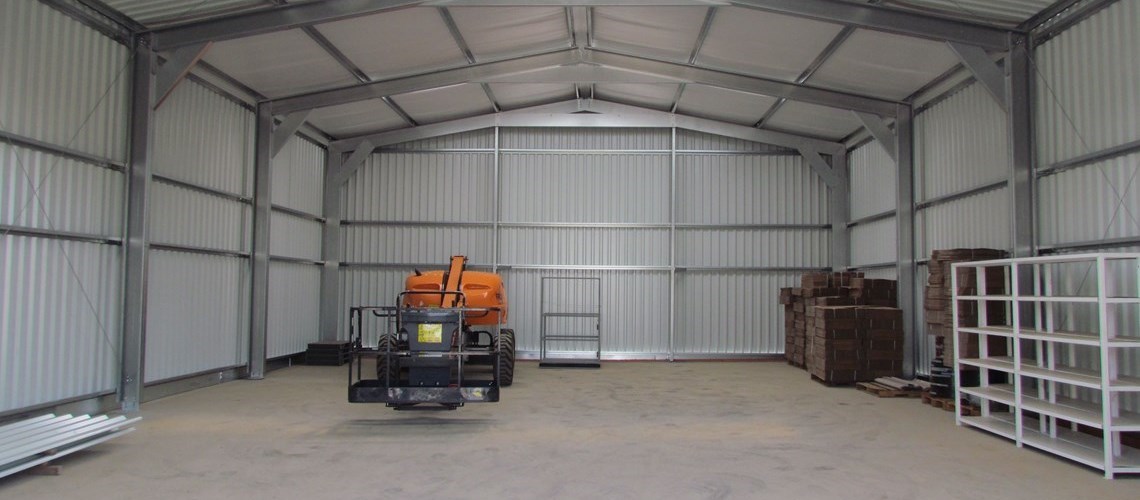

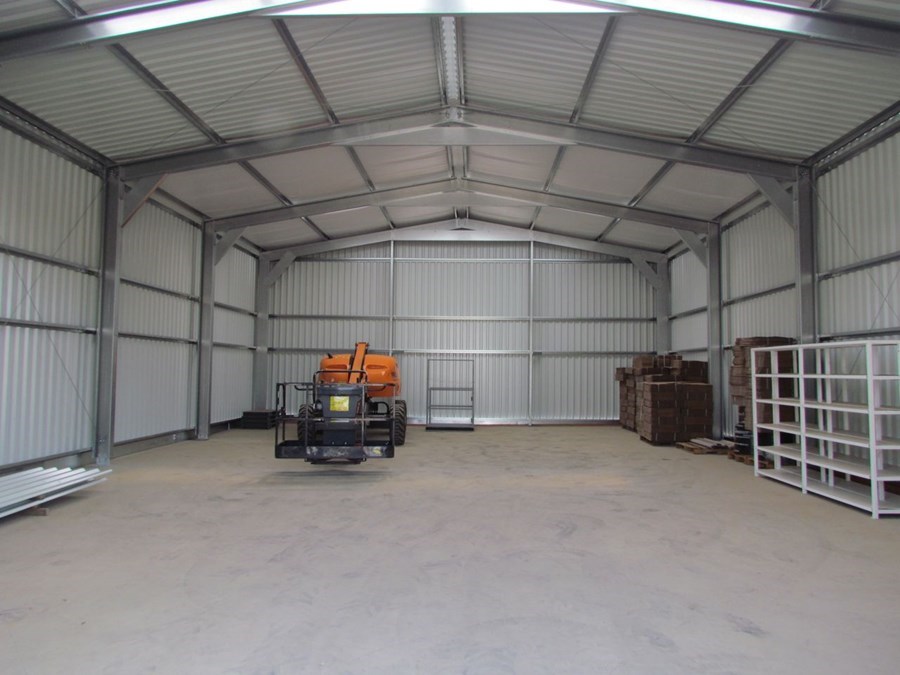

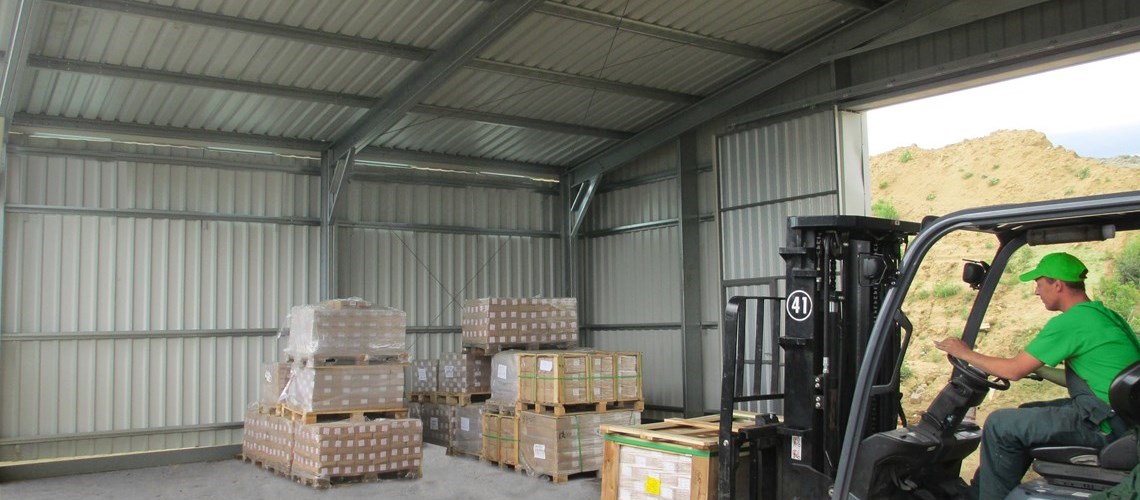

inside view of the spacious interior of a frisomat delta+ now produced in Brazil

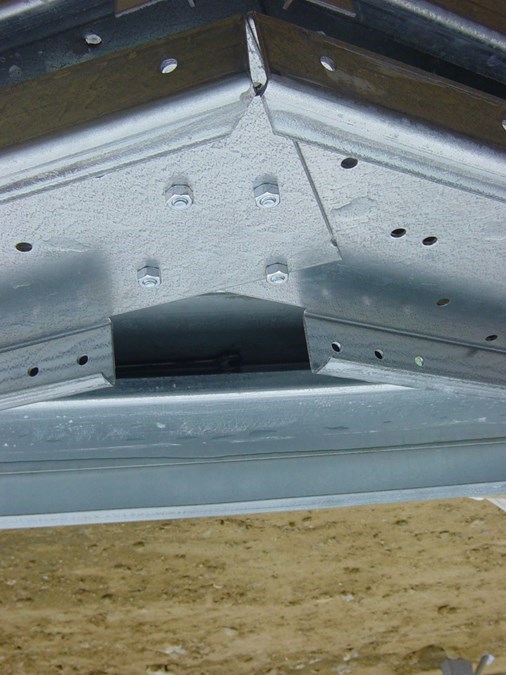

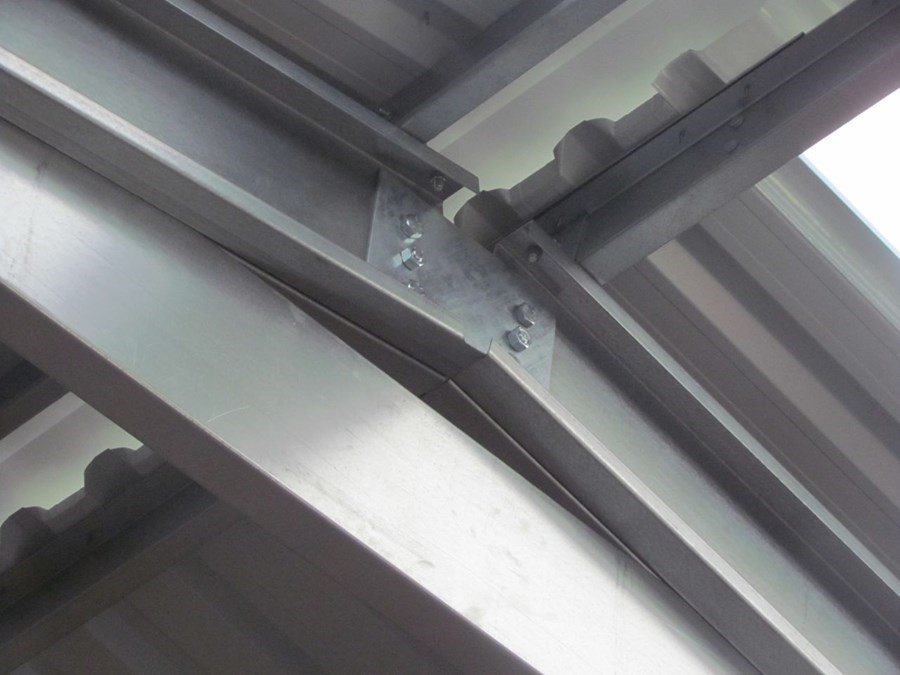

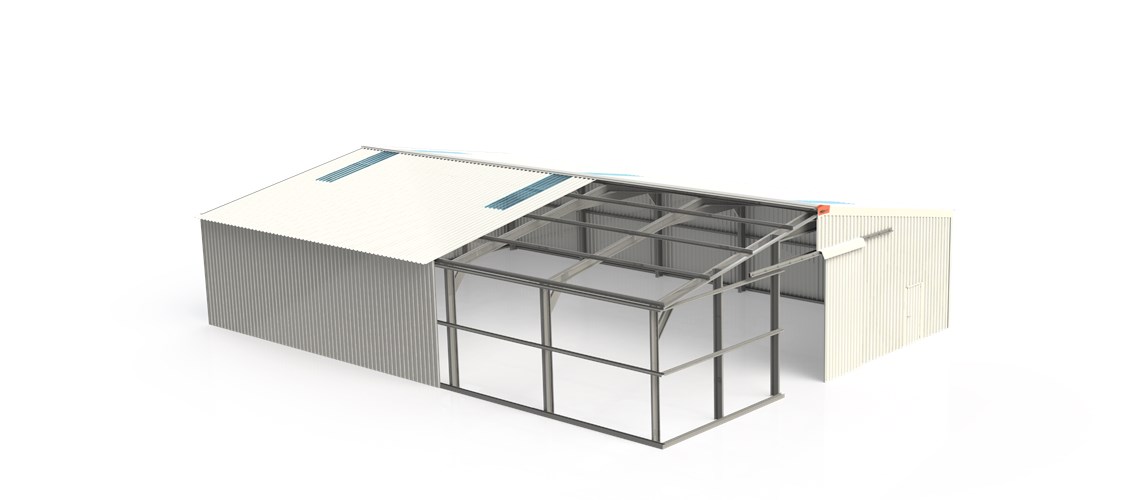

detail view of a beam from the delta skeleton, the beams are made from galvanized high speed steel and no welding is needed

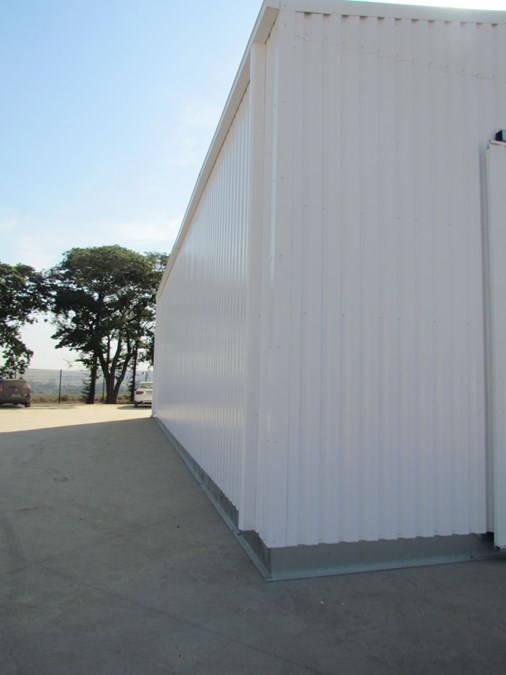

gutters allow recuperation of rainwater, we take sustainability seriously and offer gutters without extra cost as an incentive

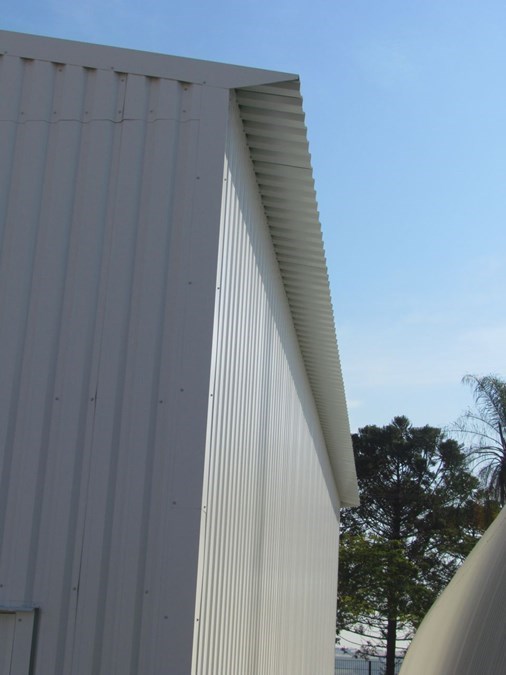

when no gutters are wanted, the roof extends 50cm out of the wall

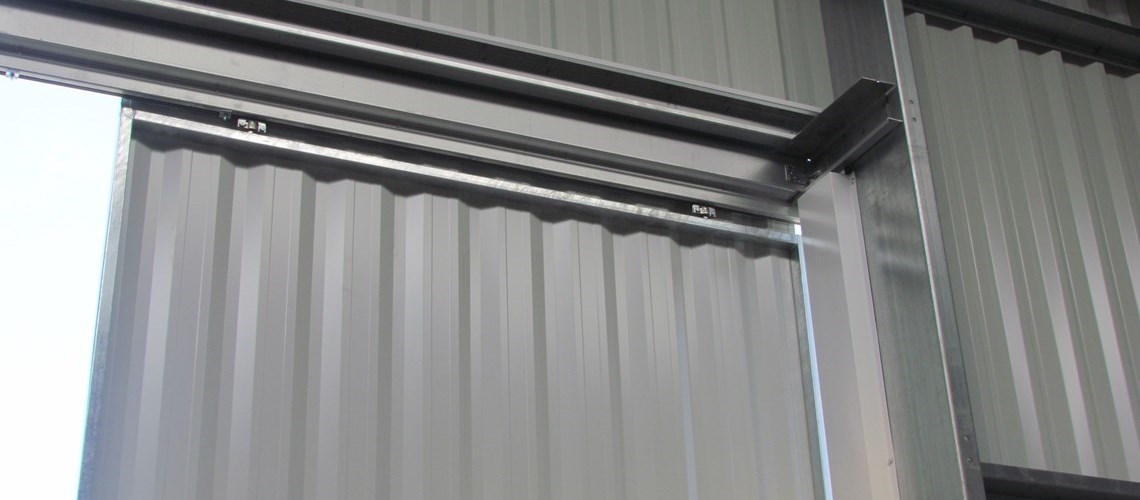

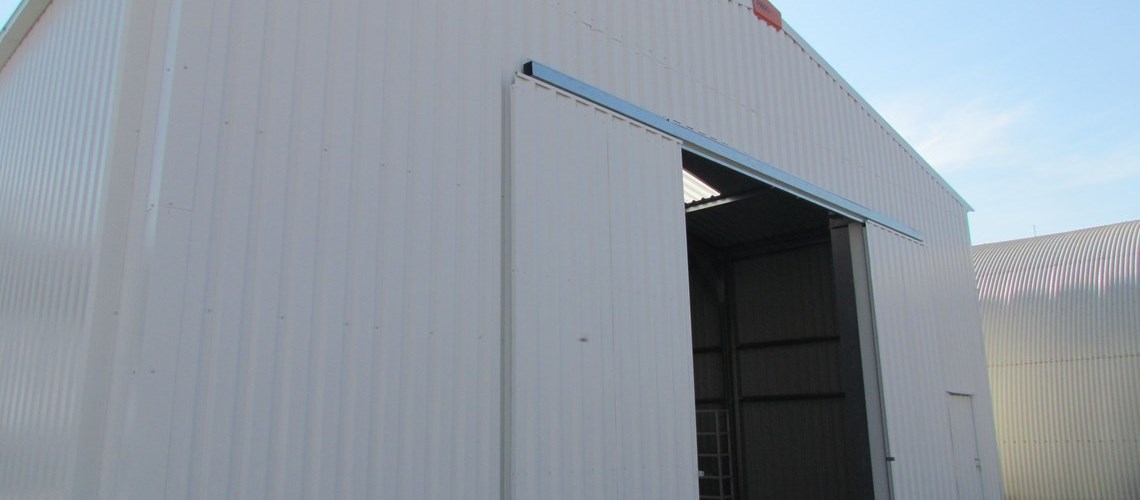

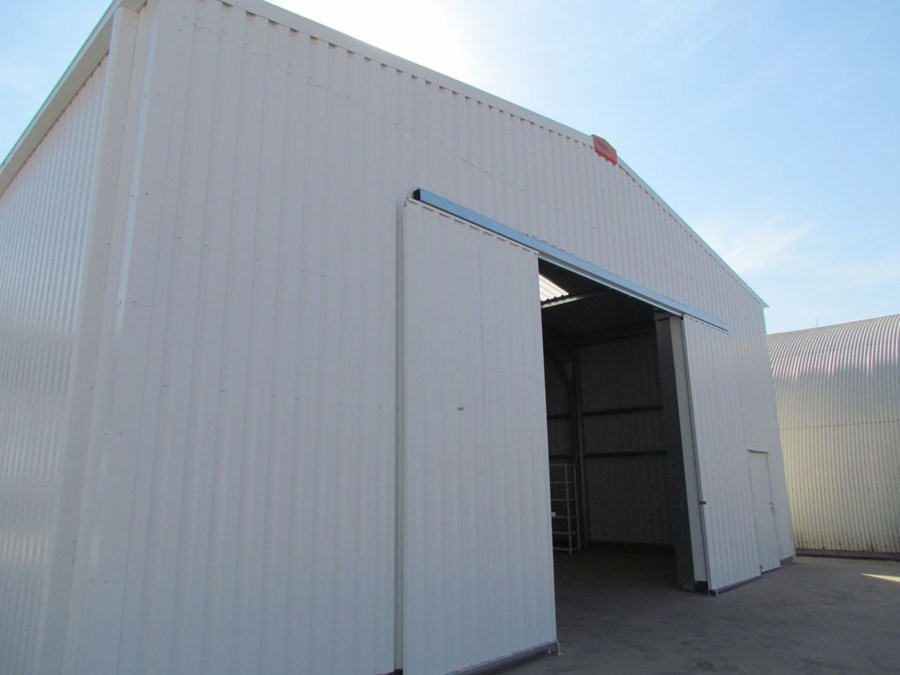

a sliding gate with 2 wings is standard, sizes are 3x3 or 4x4 depending the wall height of the building

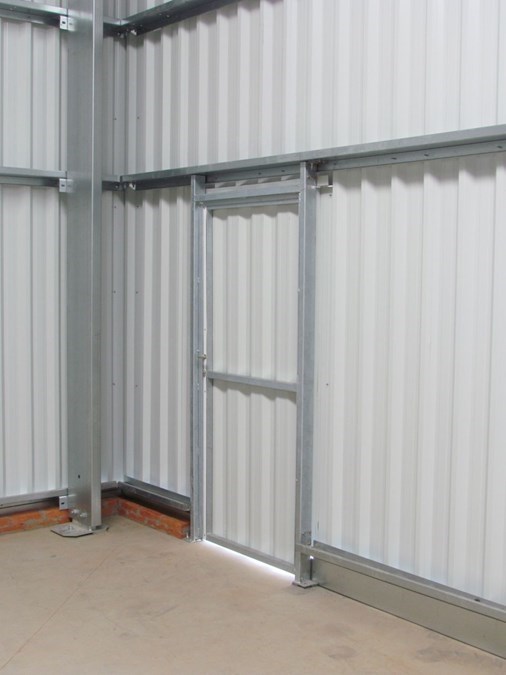

options are extra doors, wide gates (xxl gates) windows, thermal insulation, ventilation grids etc…

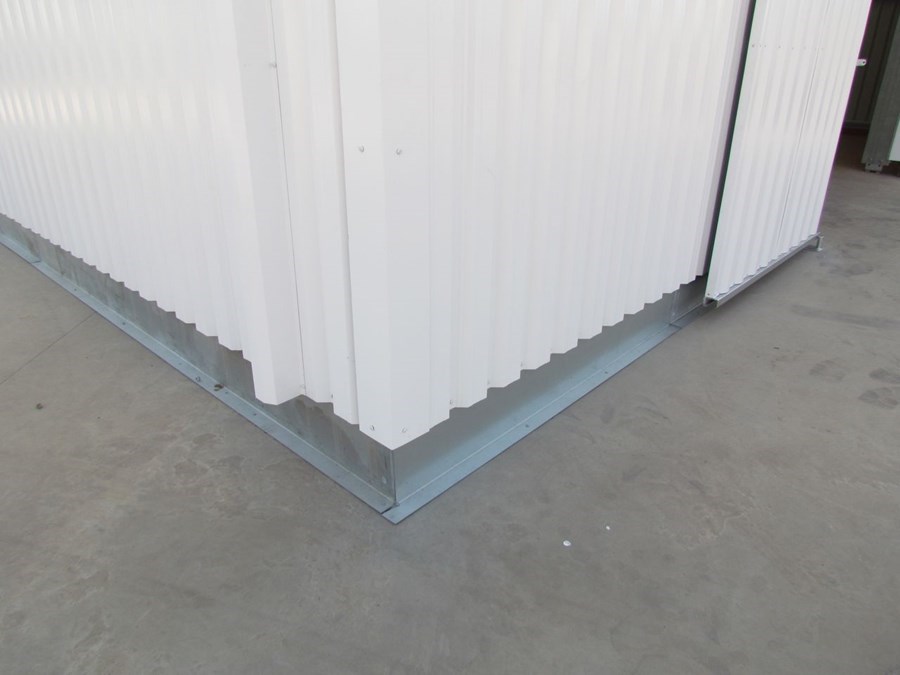

The building is sealed to the floor with a galvanized profile sheet
a ventilated ridge is standard, this adds a lot to the thermal comfort because the hot air rises and can escape through the roof

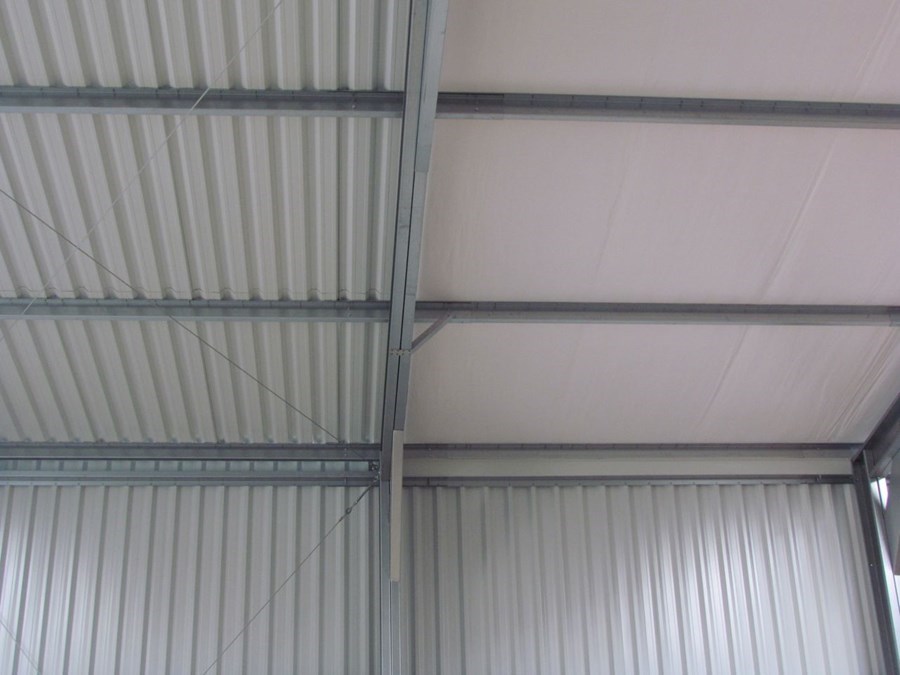

insulation is an option, we use mineral wool blankets (glasswool 50mm) reinforced with a white kraftpaper foil

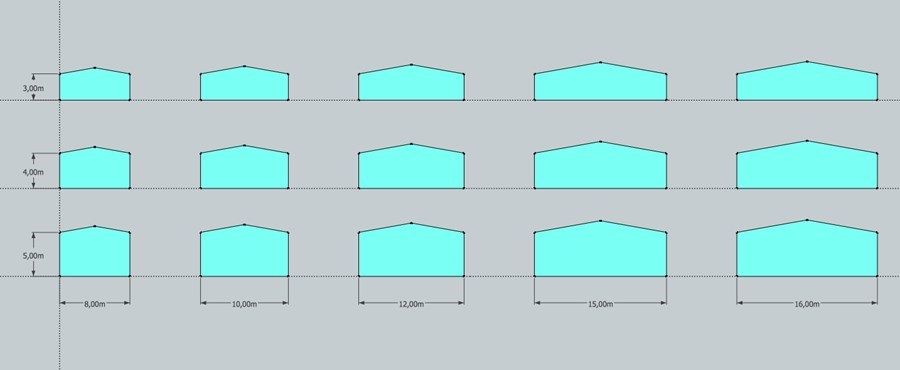

comparison of the section of all delta barns height and width

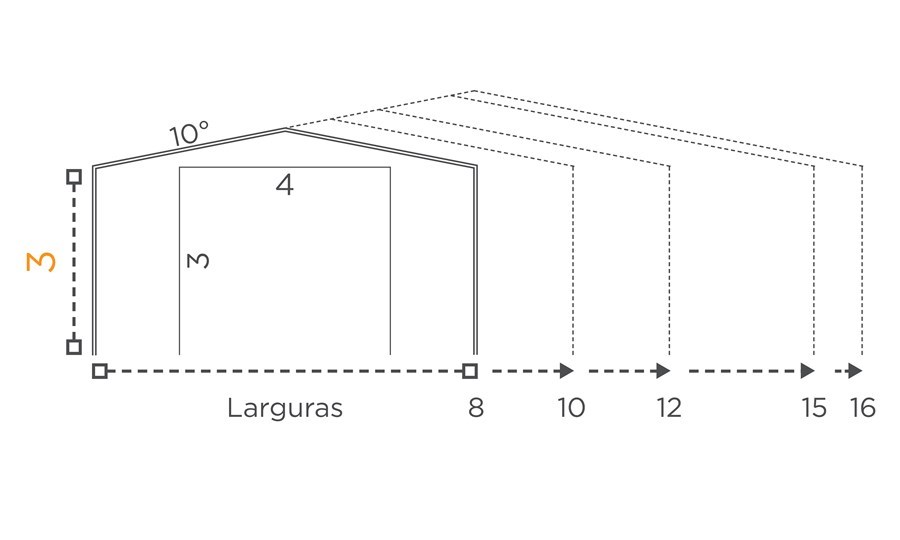

schematic drawing of a delta with wall height of 3m with span sizes and gate sizes

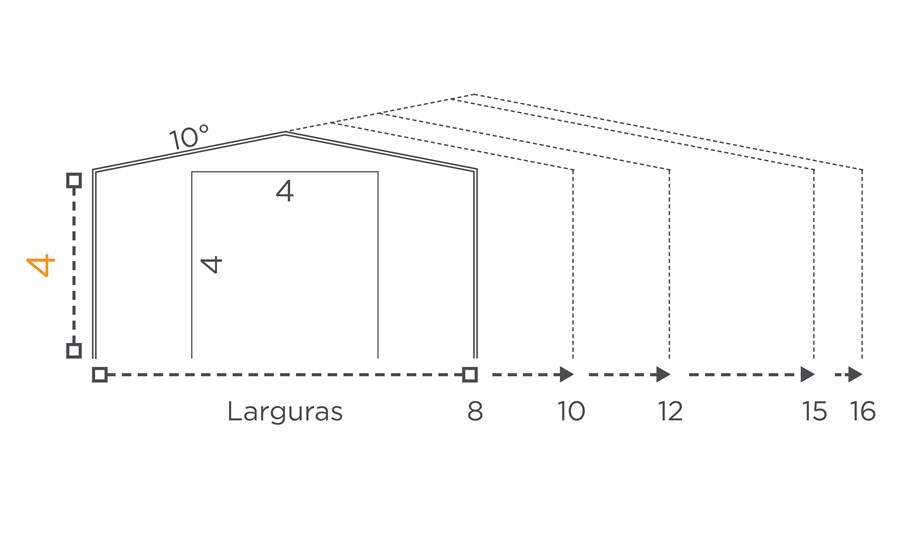

schematic drawing of a delta with wall height of 4m with span sizes and gate sizes

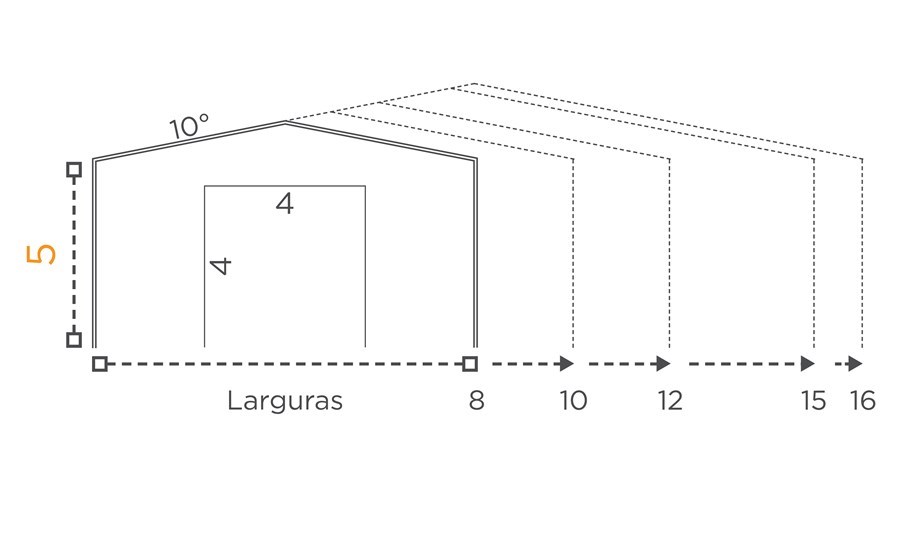

schematic drawing of a delta with wall height of 5m with span sizes and gate sizes

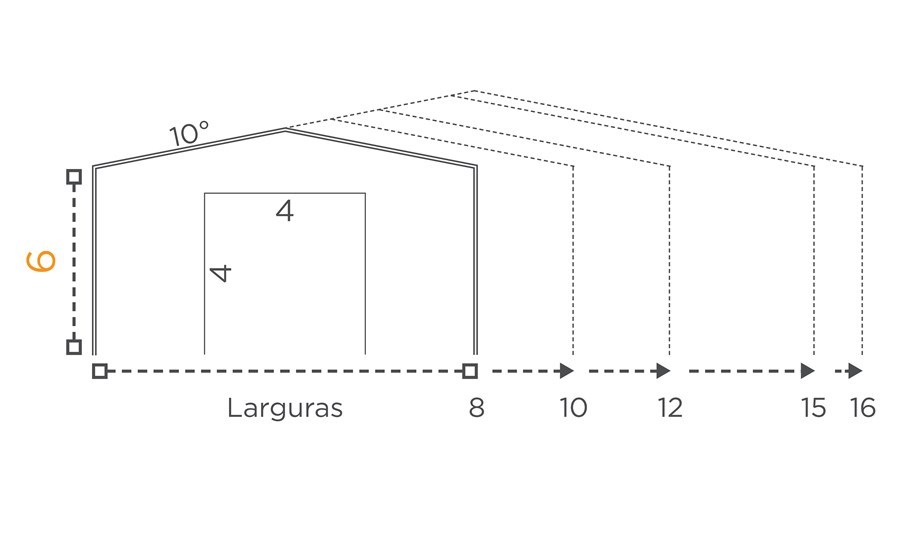

schematic drawing of a delta with wall height of 6m with span sizes and gate sizes

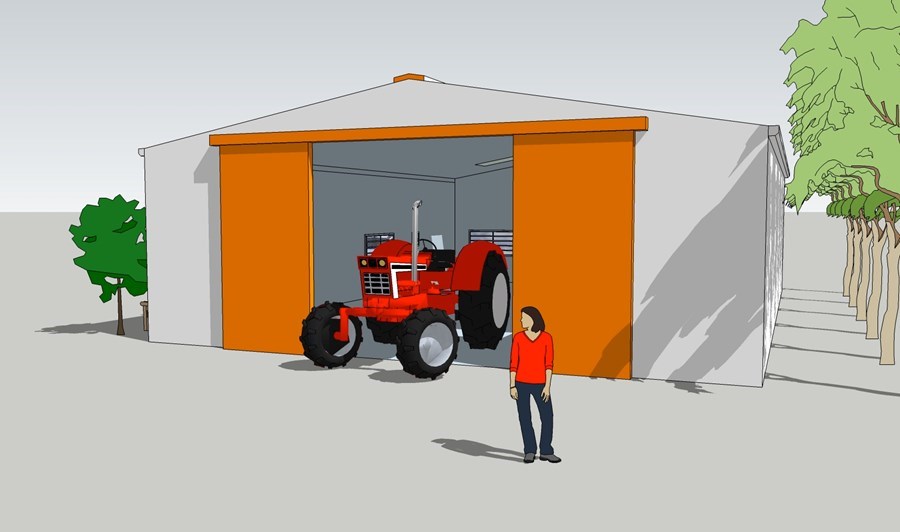

this Delta barn of 200m2 (12x17m) suits the needs of a small fazenda : storage for seeds and for the farm equipment

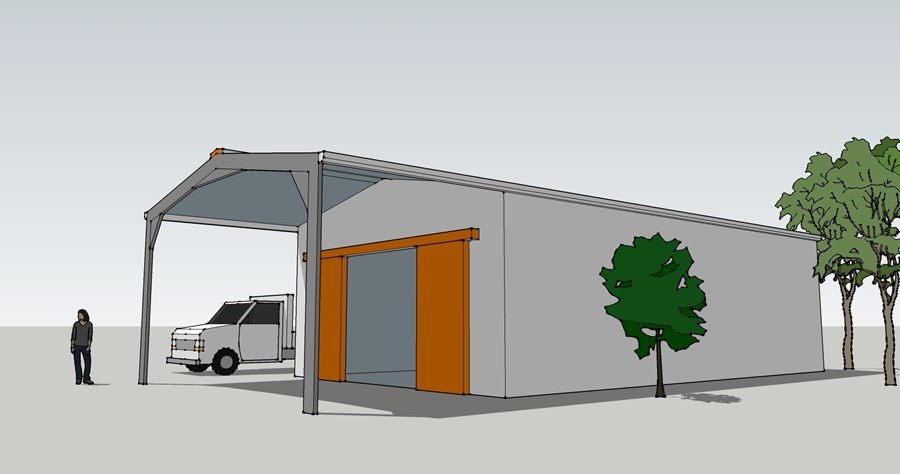

impression of a car repair shop in a small Delta hangar, size 8m wide, 4m high, 17m long, the first module is left open which creates a marquise

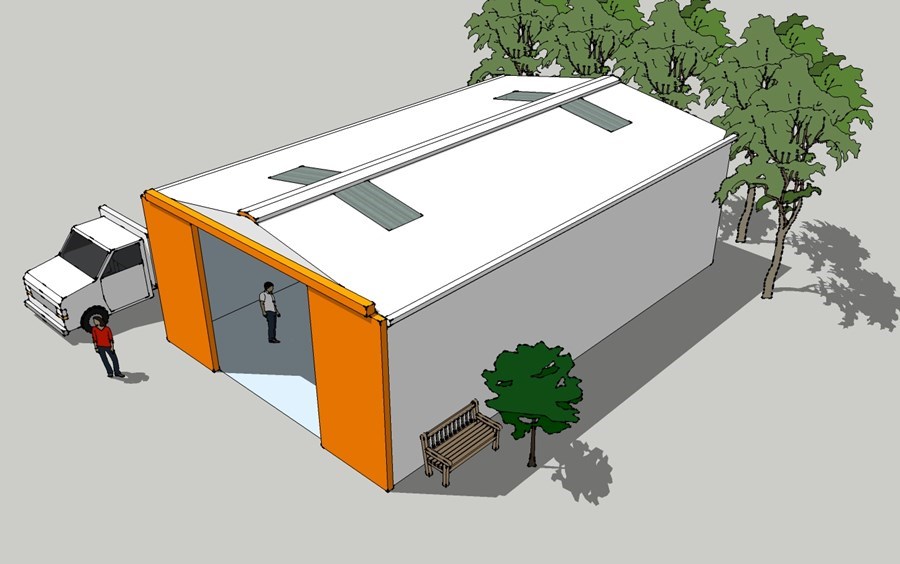

a small Delta warehouse with size of 8m wide, 4m heigh and 13 long with a 4x4m door for easy access with a forklift

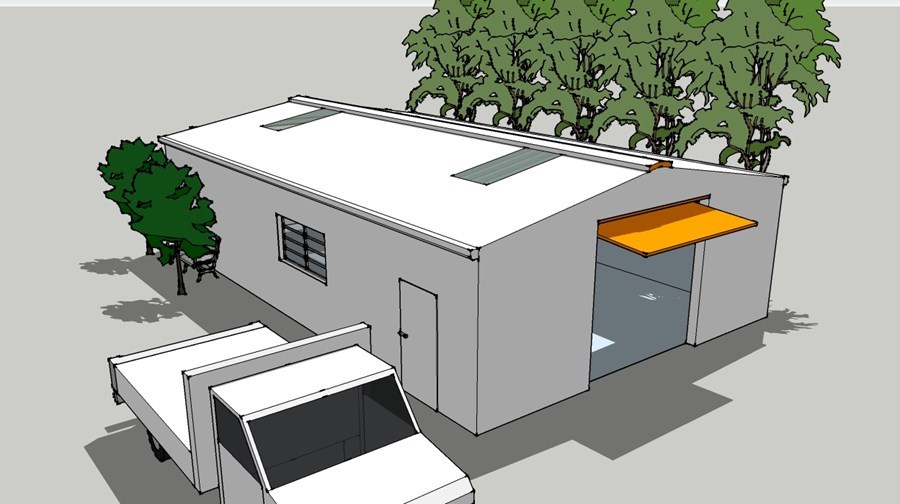

impression of a small workshop in a hangar Delta 8m wide, 3m wall height and 13 m long
this 1000m2 Delta houses the stock of a building materials shop, because it is modular, the building can always be extended.

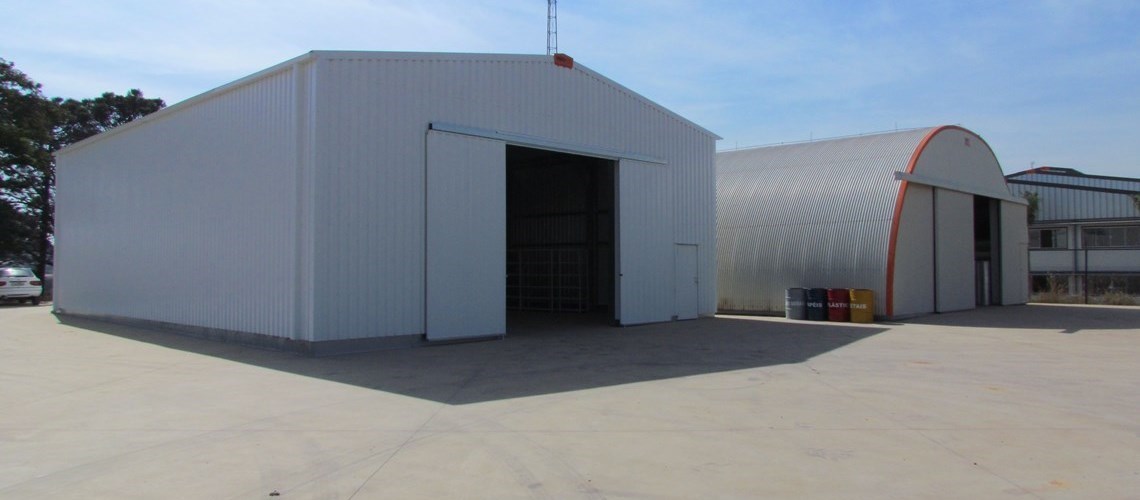

the 2 Galpão Express types side by side, both are made from galvanized steel and are modular, expandable, demountable and reusable
a concept drawing for an industrial park, offering 5 hangar business units on a 50x100 terrain

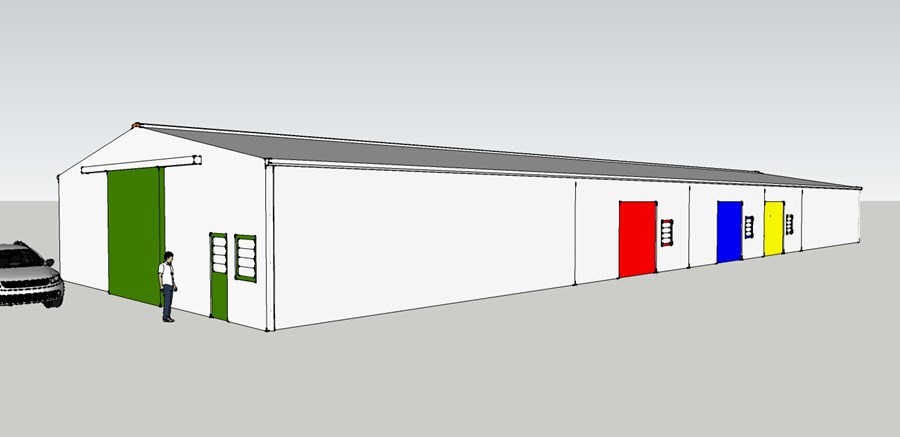

a proposal for a hangar which can serve to accommodate up to 5 small companies (starters) : view from outside

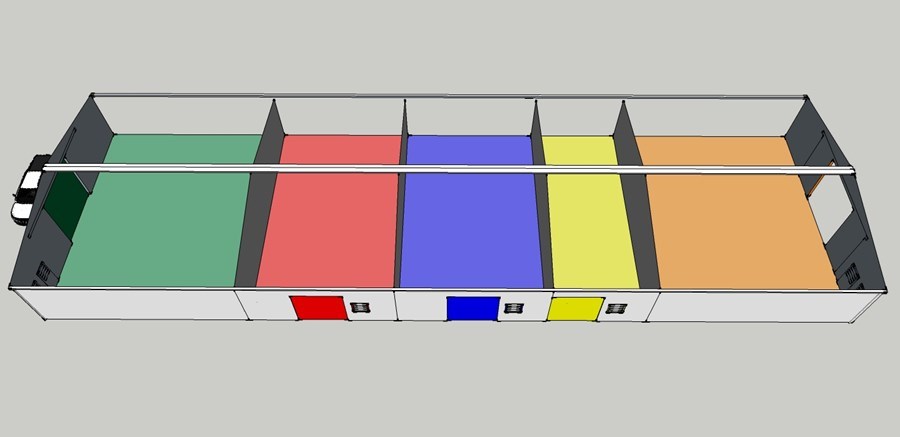

a proposal for a hangar which can serve to accommodate up to 5 small companies (starters) : internal divisions
